Crash Barriers
Crash Barriers
A crash barrier is a steel structure installed along the roadside to prevent vehicles from veering off dangerous edges or medians, and to redirect them safely back onto the roadway rather than letting them leave it. Jindal Supreme India Ltd. manufactures metal beam crash barriers for highway and roadside protection applications.
What We Manufacture
Our crash barrier range consists of W-beam sections and matching channel posts, supplied in railway and highway grades.
Specifications
| Product | Dimensions | Thickness | Zinc Coating |
|---|---|---|---|
| Railway W-Beam | 312mm × 4318mm | 2.00mm | Min. 80 micron |
| Highway W-Beam | 312mm × 4318mm | 3.00mm | Min. 80 micron |
| Channel Post (Railway) | 1800 / 2100 / 2700mm | 4.00mm | Min. 80 micron |
| Channel Post (Highway) | 1800 / 2100 / 2700mm | 5.00mm | Min. 80 micron |
All components are hot-dip galvanized to a minimum coating of 80 micron.
How It Works

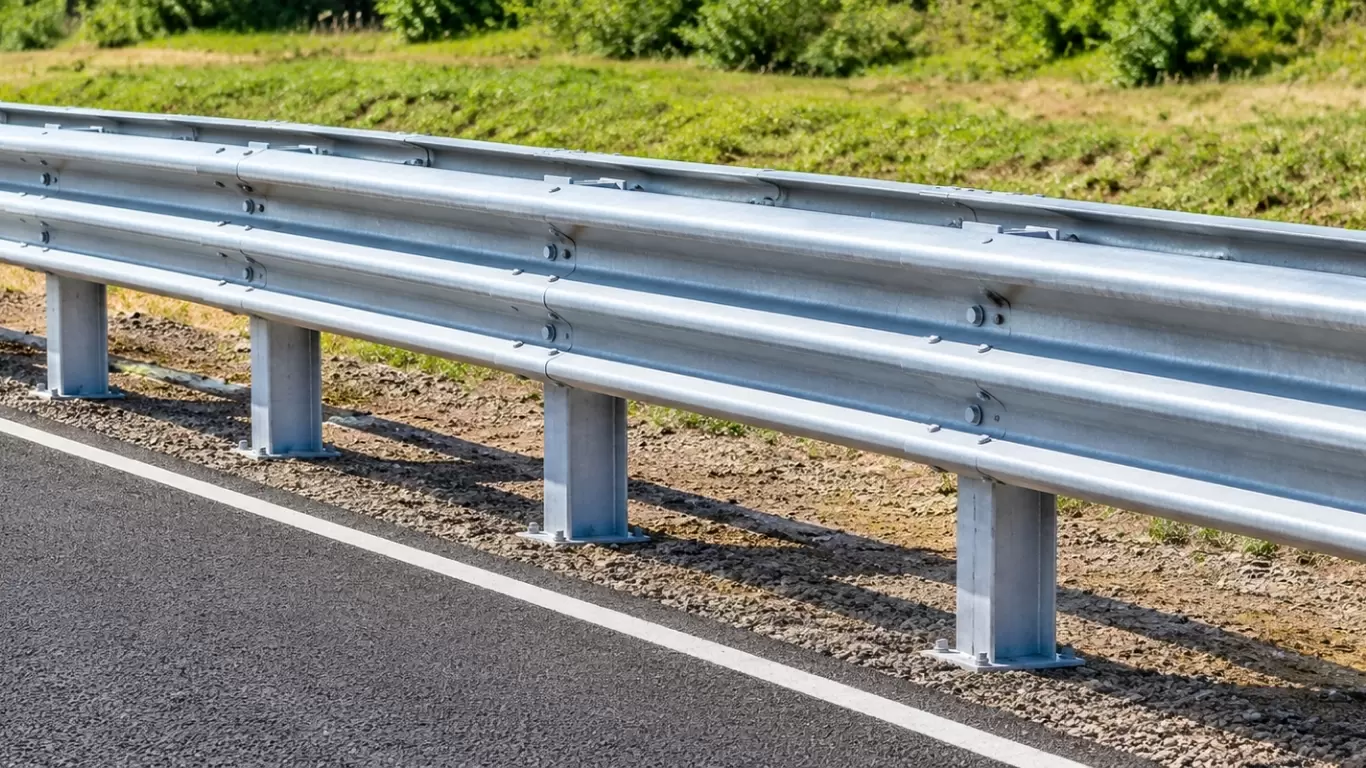

The corrugated W-beam is bolted onto channel posts fixed into the ground at regular intervals. On impact, the beam flexes and absorbs part of the force, guiding the vehicle back rather than letting it leave the roadway.
Ordering
Let us know the grade (railway or highway), quantities, and delivery location, and Jindal Supreme India Ltd. will respond with pricing and stock availability.
Need other steel products for your project? See our MS Pipe range for structural framing, GI Poles for power line applications, or GI Pipe for outdoor and moisture-exposed work. For custom orders, contact our team.
Frequently Asked Questions
What does a crash barrier do?
What's the difference between railway and highway grade?
What zinc coating do the barriers have?
What lengths are the channel posts available in?
Need Crash Barriers for a Highway Project?
Share your grade, quantities and delivery location — we will get back with pricing and stock availability.
