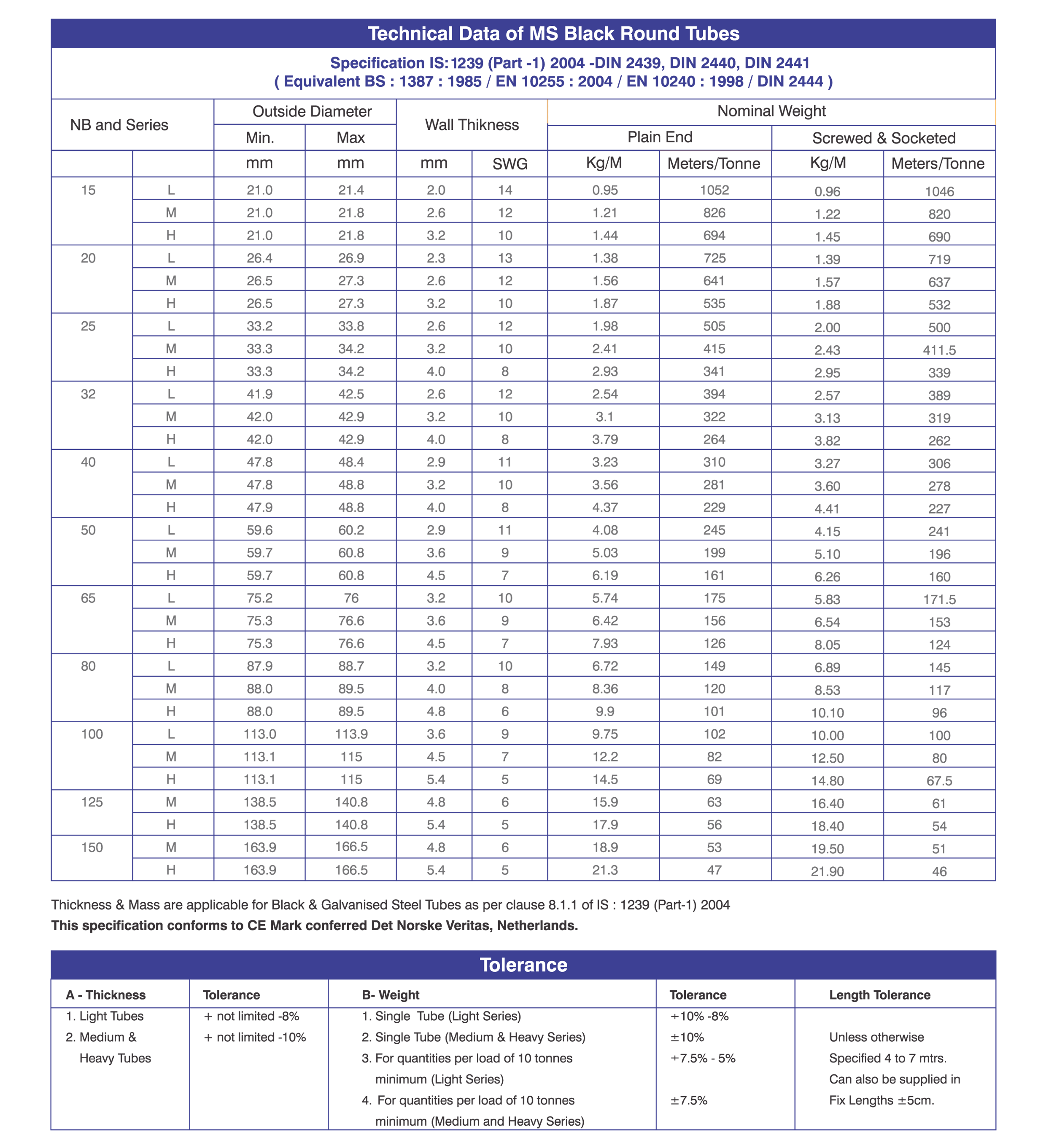

ROUND TUBES

      • TEST PERFORMED

    • Hydrostatic Test
    • Eddy Current Test
    • Flattening/Flaring Test/Bend Test
    • Chemical Analysis
    • Other Tests as Required by the Standard

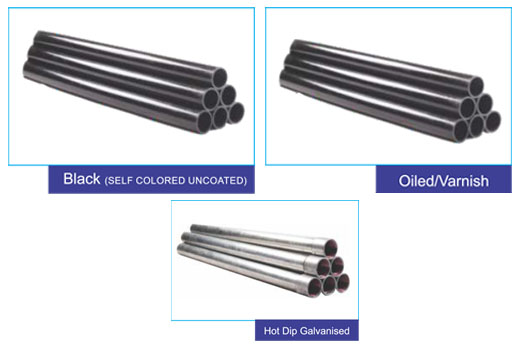

      • SURFACE PROTECTION

    • Black (self coloured uncoated)
    • Outside protective coating oil/varnish
    • Hot Dip Galvanized
  • N.B. : 15 mm – 150 mm
  • Thickness Range : 1.4 mm – 6.0 mm
  • Length : 3.0 meter – 8.0 meter

APPLICATION

  • Liquid Transmission
  • Idlers
  • Mech. and General Engineering
  • Structural
  • Water and Sewage
  • Water Wells
  • Fire Protection
  • Poles, Fencing & Many more…

PRODUCTION STANDARDS

  • IS:1239(Part-I)/2004
  • EN10255:2004,EN10240:1998
  • IS:3601-1984
  • IS:1161-1998
  • IS:2713-1980

FINISHING OPERATIONS

  • Plain end
  • Theraded and coupled
  • Cut lengths

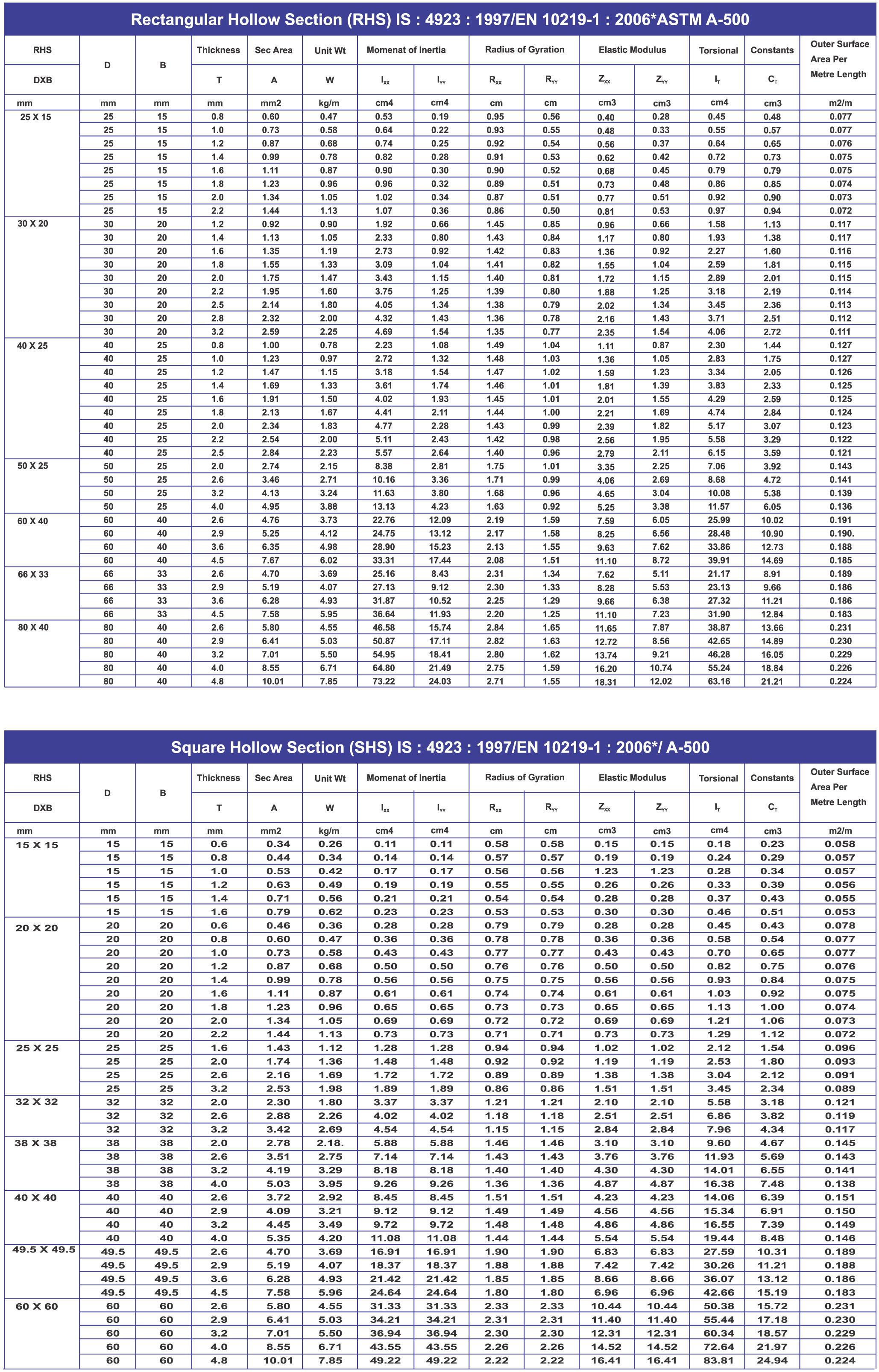

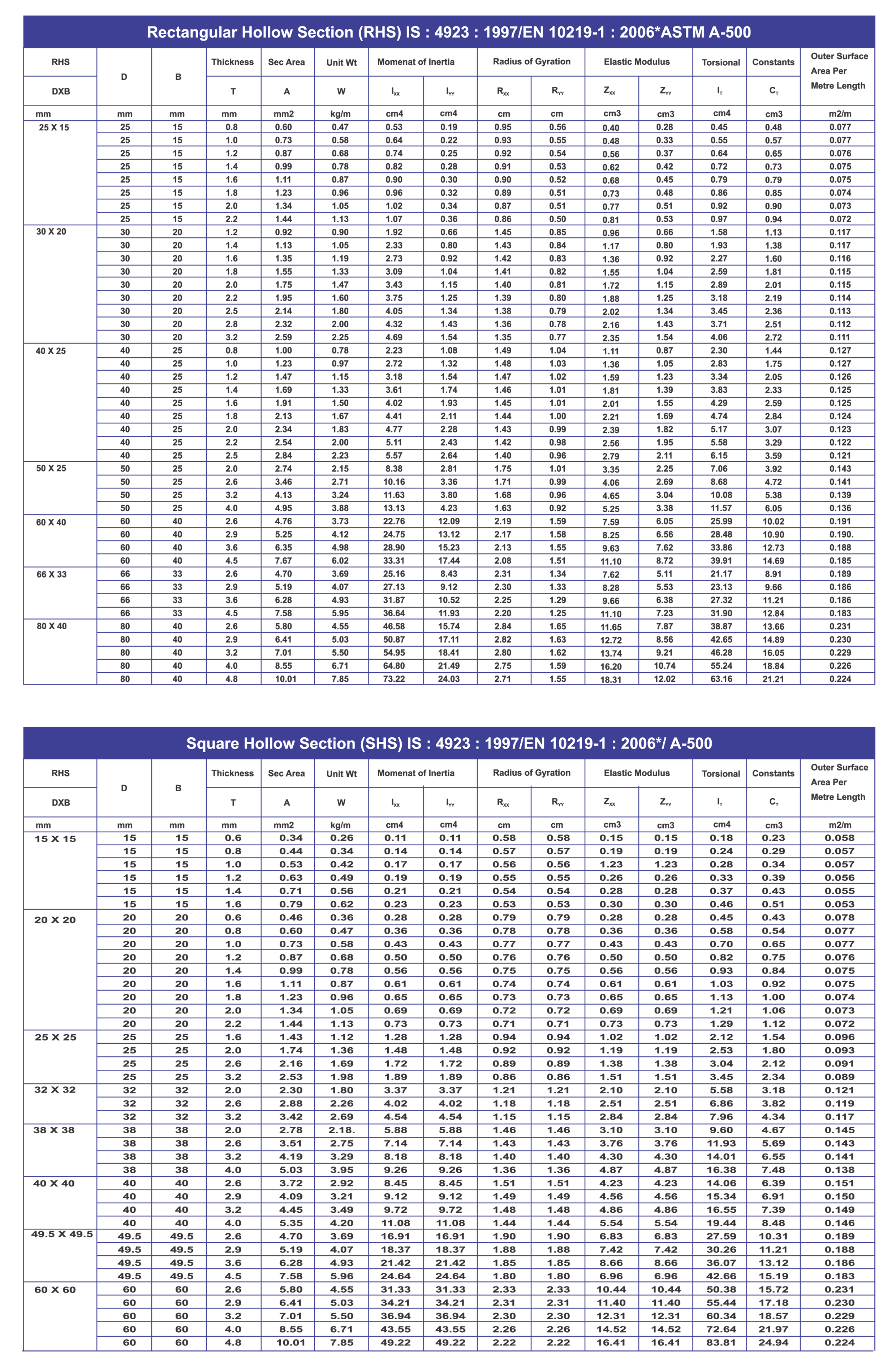

HOLLOW SECTIONS

      • TEST PERFORMED

    • Visual and Dimensional Insp.
    • Tensile Test
    • Flatting and Flaring Test
    • Impact Test
    • Chemical Analysis
    • Plain End-square cut
    • Cut Lengths
  • Size: (RHS): 20 * 15 - 80 * 40
  • (SHS): 15 * 15 – 60 * 60
  • Thickness : 1.2 mm to 3.5 mm
  • Length : 3.0 meter – 8 meter

APPLICATION

  • Construction
  • Machinery
  • Automotive
  • Furniture
  • Storage System
  • Transmission Tower

PRODUCTION STANDARDS

  • IS4932:1997
  • EN10219-1:2006

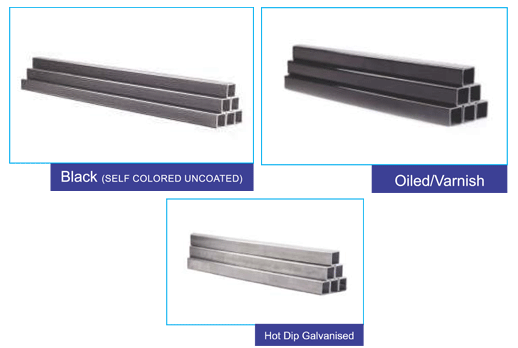

SURFACE PROTECTION

  • Black (Self Coloured uncoated)
  • Varnish/Oil Coating
  • Hot Dip Galvanized
